Family Community Detection
Detecting households is not the same as detecting communities. This project started from precomputed telecom communication communities and refined them into two nested levels of social structure: Big Family (extended social unit) and Foyer / Household (likely co-living unit). A tie had to satisfy both communication closeness and persistent shared cell-tower usage to qualify as a household candidate.
TL;DR: Key insight: The first graph segmentation is often not the final business unit. Detecting households requires a second refinement layer on top of community detection.

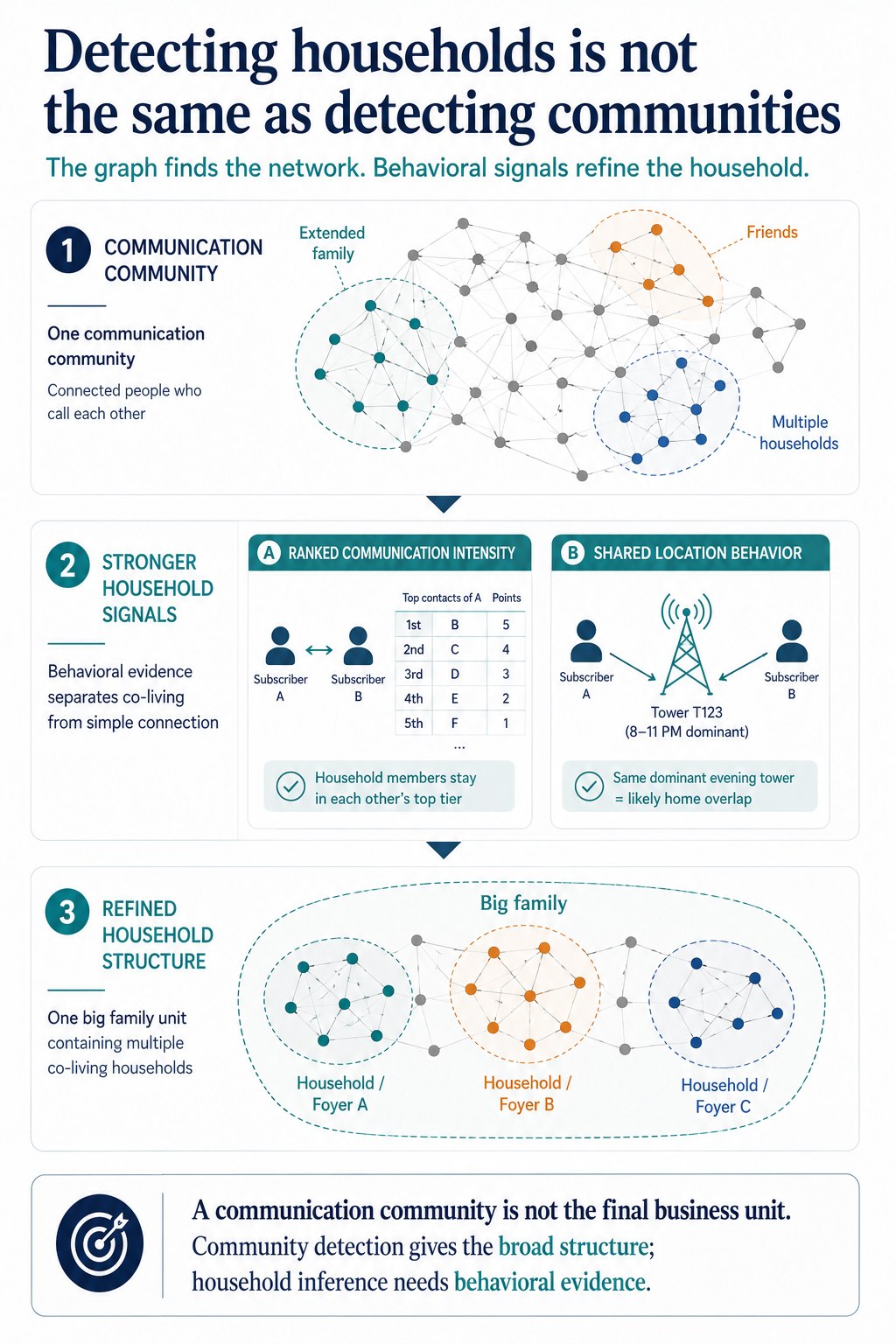

Architecture
The Problem
The project started from precomputed communication communities derived from call graph analysis. Those communities identified groups of subscribers who call each other frequently — but for CVM purposes, that output was too coarse. A communication community can mix extended family, multiple households, close friends, and work relationships all in one cluster.
The real goal was to identify likely household-level ties inside those broader communities — the smaller co-living unit that drives actual shared purchasing decisions and family offer targeting. The project refined the graph output into two nested social structures:
- Big Family: the broader connected social unit (extended family)
- Foyer / Household: the smaller likely co-living unit inside it
Key insight: The first graph segmentation is often not the final business unit. Detecting households requires a second refinement layer on top of community detection.
Behavioral Signal Design
To qualify as a household-level tie, two conditions had to be satisfied simultaneously. Neither alone was sufficient.
Signal 1: Ranked Communication Intensity
Build top-5 incoming and outgoing contact lists for each subscriber, preserving ordinal importance. A household tie is more likely if the other person appears in the top contacts — not just if they have any calls together. Ranked lists filter out occasional contacts and focus on persistent, close relationships.
Signal 2: Shared Cell-Tower Usage
Dominant cell-tower usage is a behavioral proxy for recurring location overlap. Instead of asking where people declared they lived, the pipeline inferred shared daily-life proximity from repeated infrastructure traces — the top 5 most-used towers per subscriber. A household tie requires shared dominant towers, not just shared calls.
Signal Intersection: Both Must Hold
A tie is classified as a household candidate only if the related subscriber appears in both the top contact list AND shares dominant cell-tower locations. Communication closeness without shared location could be a work relationship. Shared location without communication closeness could be neighbors. Only the intersection reliably points to a household structure.
Pipeline: Key SQL Steps
Filter to communities with enough telecom subscribers
select community_candidates.*,
community_sizes.telecom_member_count
from community_candidates
left join (
select community_id,
count(subscriber_id) as telecom_member_count
from community_candidates
group by community_id
) community_sizes on community_candidates.community_id
= community_sizes.community_id
where community_sizes.telecom_member_count >= 2;
Aggregate direct subscriber-to-subscriber communication
select caller_subscriber_id as source_subscriber_id,
callee_subscriber_id as target_subscriber_id,
sum(call_count) as total_calls,
sum(call_duration) / 60 as total_duration_minutes,
sum(active_days) as total_active_days
from subscriber_traffic
where source_is_telecom_customer = 1
and target_is_telecom_customer = 1
group by caller_subscriber_id, callee_subscriber_id;
Keep top-used cell towers per subscriber (proxy for home location)
select * from (
select subscriber_cells.*,
row_number() over (
partition by community_id, subscriber_id
order by tower_usage_count desc
) as tower_rank
from subscriber_cells
)
where tower_rank <= 5;
Keep ties that are both close contacts AND share dominant location
case
when related_subscriber_id in (
top_outgoing_contact_1,
top_outgoing_contact_2,
top_incoming_contact_1,
top_incoming_contact_2
)
then related_subscriber_id
end as close_contact_subscriber_id
Graph partitioning in R (igraph) to produce Foyer groups
select distinct
subscriber_id as source_subscriber_id,
substr(household_id, 1, 8) as target_subscriber_id,
big_family_id as family_group_id
from household_graph_edges
where household_id is not null
order by big_family_id;
Key Takeaway
Cell-tower dominance as a behavioral proxy for home-location overlap is one of the most useful patterns in applied telecom analytics. Instead of asking where people declared they live, the pipeline infers shared daily-life proximity from repeated infrastructure traces. The strongest features are not always direct measurements — sometimes they are operational traces that behave like reliable proxies for the concept you care about.
Design insight: The first clustering step is often only the beginning. In graph analytics, the real work starts when you refine a connected community into the smaller behavioral unit the business actually needs — and that requires a second signal layer beyond call frequency alone.
FAQ
What is the key takeaway from "Family & Household Detection"?
Key insight: The first graph segmentation is often not the final business unit. Detecting households requires a second refinement layer on top of community detection.
Who wrote this and what is it about?
This was written by Mahmoud Trigui, Senior Data Scientist. Detecting household-level ties inside telecom communication communities at Tunisia Telecom. Two nested social structures: Big Family (extended social unit) and Foyer/Household (co-living unit). Ranked communication intensity + shared dominant cell-tower usage as behavioral proxy for home location. Graph partitioning with igraph, SQL, SAS. Production deployed for CVM operations.
